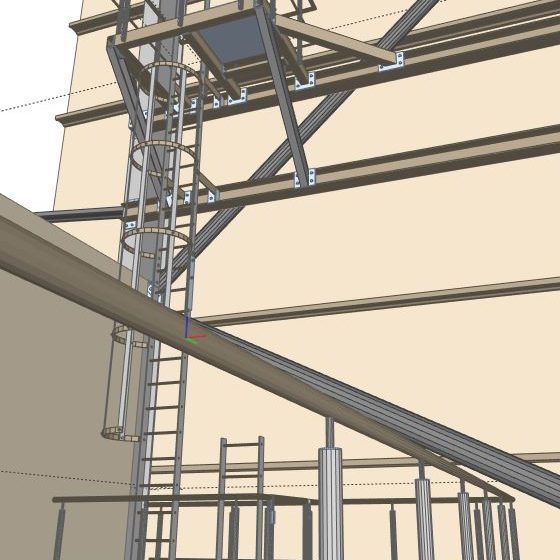

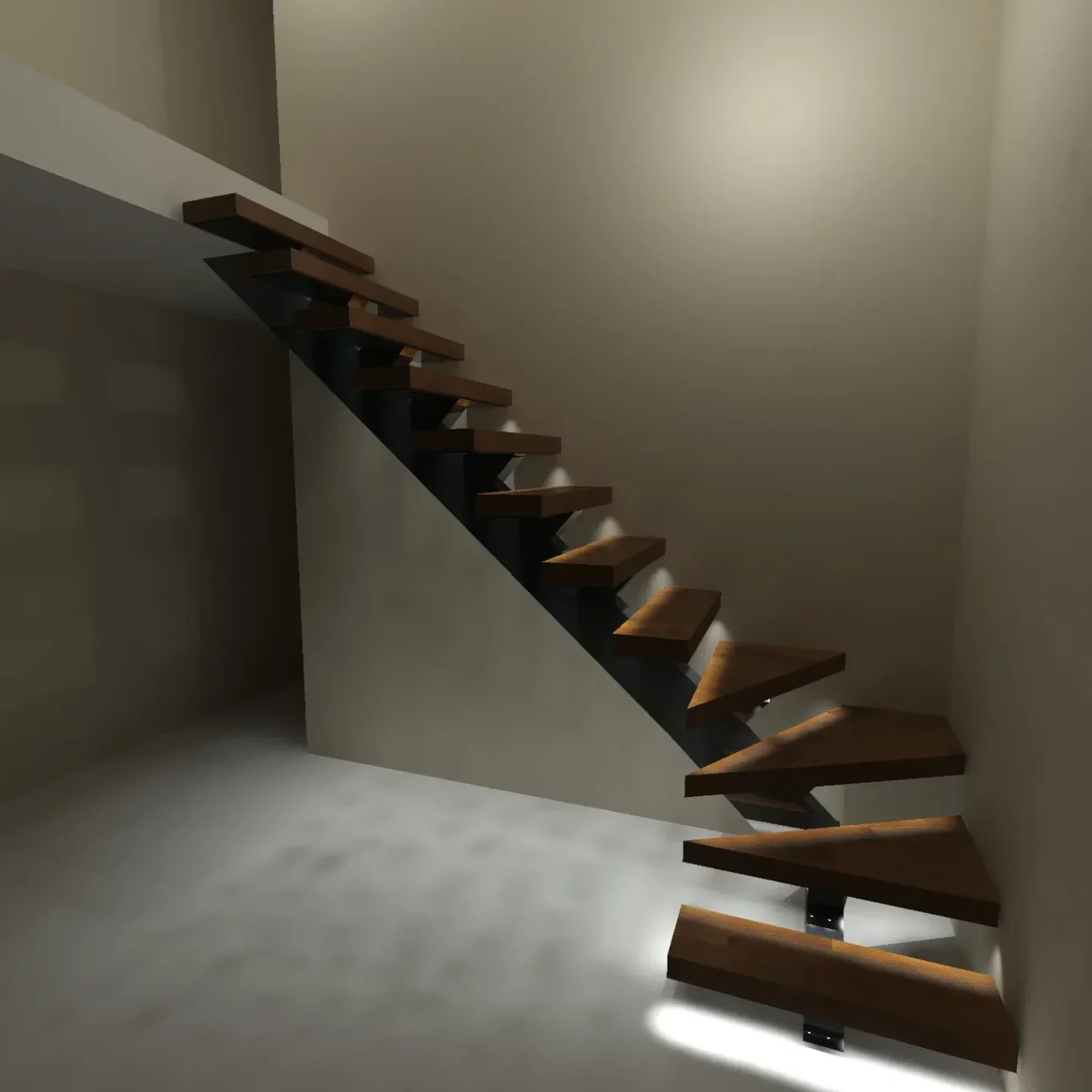

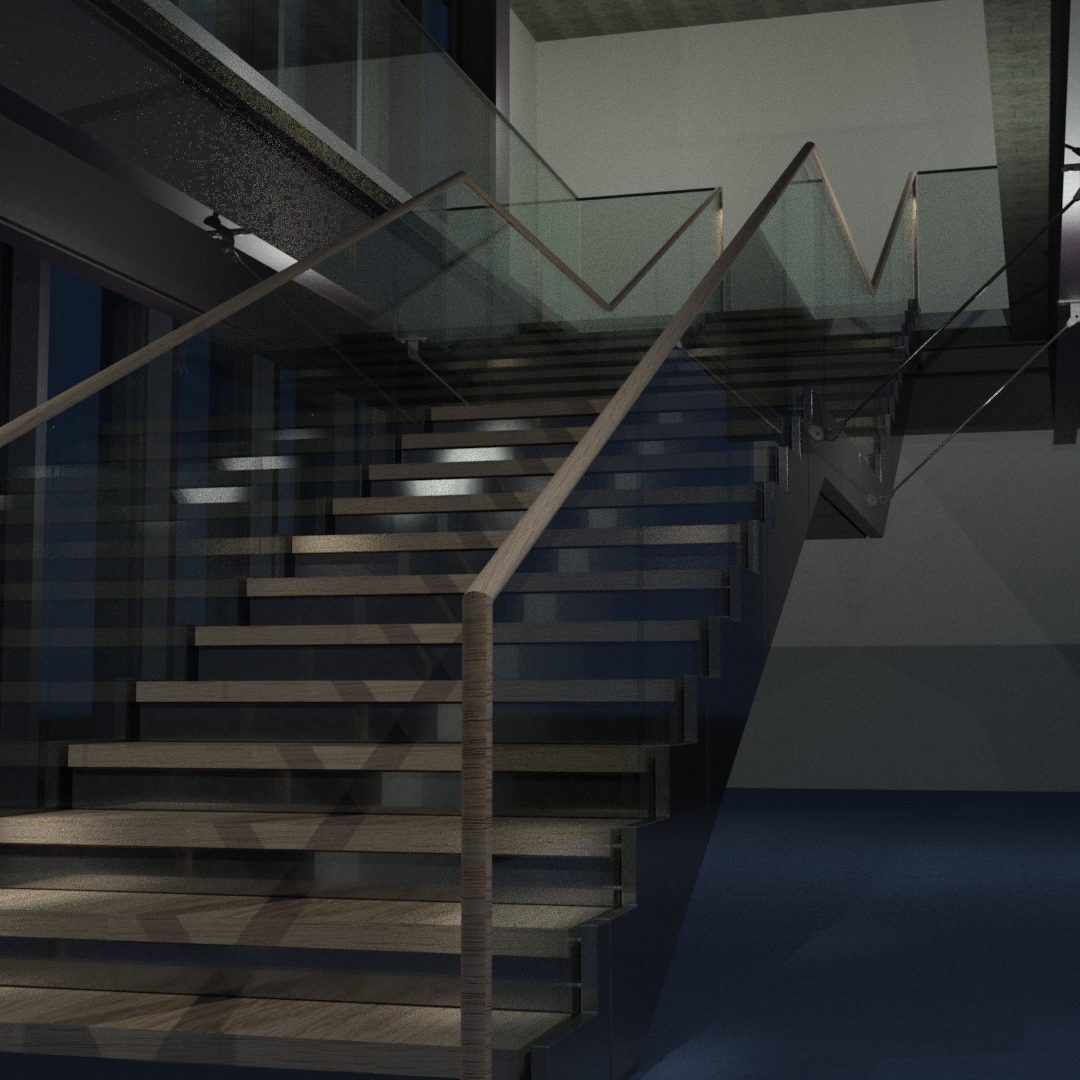

We provide 3D steel modelling and detailing using Autodesk Advance Steel, creating accurate digital models and drawings for steelwork projects.

Depending on project requirements, deliverables can include:

• 3D steel models
• General arrangement drawings
• Assembly drawings
• Single-part drawings
• Fabrication drawings
• Connection details
• Material information
• Bills of materials
• CNC data where required

Working from architectural drawings, structural information or existing project documentation, we can develop the required steelwork detailing for manufacture and installation.
